Copper Nickel Pipe Product Details
Product Description

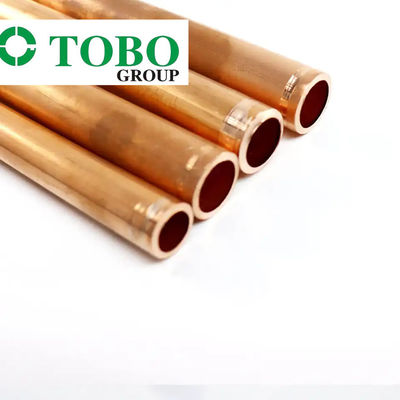

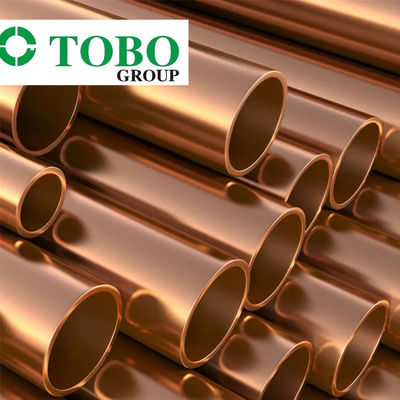

Copper Nickel Pipe is a high-performance alloy pipe composed of copper and nickel, boasting excellent corrosion resistance, superior mechanical performance and reliable thermal conductivity. Designed for harsh working conditions, it is ideal for marine, industrial and commercial use, offering a safe, cost-effective solution for fluid transport and heat exchange scenarios.
Product Specification
As a premium alloy pipe, Copper Nickel Pipe is mainly made of copper and nickel. It has strong corrosion resistance, good processability and stable physical properties, easy to bend, weld and install. Produced in line with industry standards, it features uniform size, smooth surface and reliable quality to meet diverse application requirements.
Product Key Parameters
|
Parameter Name
|
Specification Range
|
Unit
|
Remarks
|
|
Outer Diameter
|
6-219
|
mm
|
Customizable
|
|
Wall Thickness
|
0.8-10.0
|
mm
|
Pressure-dependent
|
|
Alloy Composition
|
Cu-Ni 90/10, Cu-Ni 70/30
|
-
|
Common types
|
|
Operating Temperature
|
-50 to 300
|
℃
|
Stable in this range
|
|
Operating Pressure
|
0.6-16
|
MPa
|
High-pressure optional
|
|
Tensile Strength
|
300-500
|
MPa
|
Alloy-dependent
|
|
Surface Treatment
|
Polished, Pickled, Annealed
|
-
|
Application-based
|
|
Length
|
3-12
|
m
|
Customizable
|
Product Application
1. Marine & offshore: Used in shipbuilding and offshore platforms for seawater cooling, ballast water and hydraulic pipelines.
2. Industrial use: Applied in chemical, petrochemical and power plants for corrosive media transport and heat exchange pipelines.
3. HVAC & refrigeration: Suitable for air conditioning and refrigeration equipment as heat transfer and refrigerant pipelines.
4. Plumbing & water supply: Used in coastal areas and desalination plants for water supply and drainage.
5. Other fields: Applied in medical equipment and food processing for high-purity fluid transport.
Product Advantages
1. Excellent corrosion resistance: Performs well in seawater, brine and industrial chemicals, resisting pitting, crevice and erosion corrosion.
2. Superior mechanical performance: High tensile strength, ductility and impact resistance; easy to bend, weld and process.
3. Durable: Long service life in harsh environments, low maintenance cost, anti-fouling and anti-scaling.
4. Good thermal & electrical properties: High thermal conductivity for efficient heat transfer, stable thermal expansion and good electrical conductivity.
5. Versatile & cost-effective: Wide application range, cost-saving for long-term use, customizable in size and specification.
6. Safe & reliable: High pressure resistance, stable performance, compliant with industry standards.
Product Functions
1. Fluid transport: Safely conveys various fluids (seawater, chemicals, water, refrigerant) in different systems.
2. Heat transfer: Enables efficient heat exchange in HVAC, refrigeration and industrial heat exchange systems.
3. Corrosion protection: Protects pipeline systems from harsh media corrosion, extending equipment service life.
4. Pressure bearing: Withstands certain working pressure to ensure leak-free, stable fluid system operation.
5. Harsh environment adaptation: Maintains stable performance in marine, high-temperature and high-corrosion environments.
